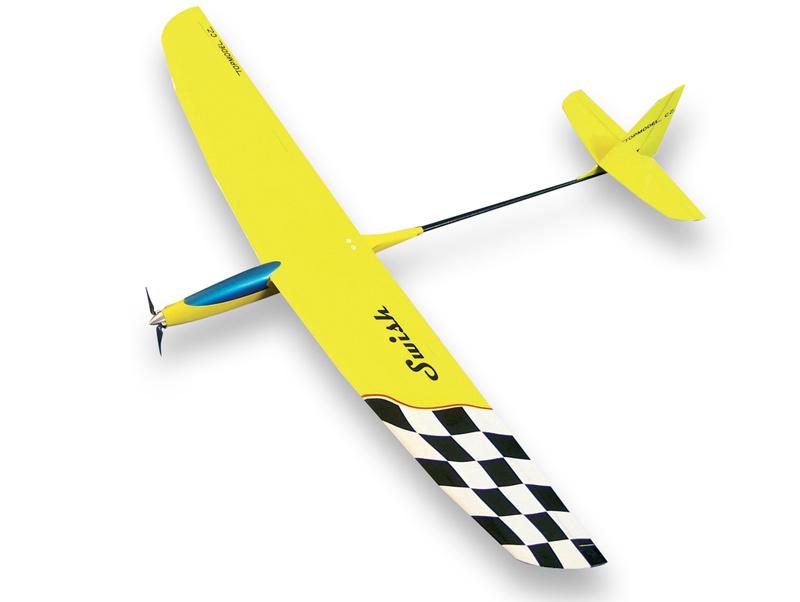

Clever sailplane for sports flights.
Economic but nevertheless with high performance.
Thanks to its powerfull drive, Swish can handle dynamic flying. Large areas of rudders, they give a high mobility. Swish excite anyone looking for a dynamic electroglider which is able to climb steep and flying acrobatics.
More expert pilots will also be impressed by its excellent flight qualities, due both to the thin wing profile and the low weight.
The advantage of thi model is in a high flight dynamics, supported by great dexterity.
If you are interested in a different color combination than we offer, please contact us.
Technical specification:
|
|
|
|
|
|
|
|
Motor: AXI 2217/12 V2 LONG + CAMcarbon 9x6"
Mega ACn 16/15/6 + CAMcarbon 7x4"
Kit contents:
- light fuselage moulded in white tinted epoxy fiberglass with rear strut
- two piece wing are manufactured in a balsa framework covered with Oracover®
- tailplane are manufactured from balsa covered with Oracover®
- decal sheet
- high quality accessories
- complet assembly manual with step by step illustrations
BUILDING MANUAL: ASSEMBLY OF THE OUTRUNNER MOTOR:
Equipments required
 | JSP-33 Název zboží: SPIN 33 PRO Price: 81,30€  Delivery status: in stock SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage. |
 | 3EL105615V2L Název zboží: AXI 2217/12 V2 LONG střídavý motor Price: 79,92€ Delivery status: in stock Ø27,7m x 44,4mm, RPM 1380/1V, weight 74g. Brushless outrunner new generation of extended tapered front edge for easy installation in gliders. For HOTLINER 900 g, power Lixx 2-3s, 3.17 mm shaft, controller 30-45A. |
 | 1HI3021-1x Název zboží: HS-65HB 1xBB bulk 1pc unpacked Price: 24,40€ (recommended quantity: 2 pieces) Delivery status: in stock Strong microservo 11g with carbonite gears for ,micro-helicopters and small electric plane and car models. Thrust 1.8 kg / cm, speed 0,14s/60st in 4,8 V, 1:18. 1xBB Notice: for: 1x elevator and 1x rudder |
 | KAV33.7118 Název zboží: KAVAN Li-Po 1600mAh/11,1V 30/60C Air pack Price: 24,06€ Delivery status: contact us KAVAN LiPo power pack 30/60C, charge rate up to 2C. Three-cell pack 3s1p 11.1V 350 mAh, dimensions: 107x36x18mm, weight: 125g, JST-XH balance connector. |
 | 3531 Název zboží: Servo ES 08 MD II Price: 15,42€ (recommended quantity: 2 pieces) Delivery status: in stock 12g, metal gears, torque 2 kg/cm, speed 0.12 sec/60°(6V). dimensions:23 x 11,5 x 24 mm Notice: for: 2x ailerons |
 | 0201503 Název zboží: Alu precision spinners 30/3,17/8 Price: 13,00€ Delivery status: in stock Spinner ø 30/3,17 mm, for blade root width 8 mm. |
 | 723401 Název zboží: CAM CARBON 9x6", 23,0x15,0 cm Price: 8,80€ Delivery status: in stock the width of the root 8mm for M3 screw, to 16.000 rev / min |
 | UHU5146 Název zboží: UHU-Por 50ml Price: 4,38€ Delivery status: in stock Notice: for gluing the servo covers |
 | 020SA2217 Název zboží: System preventing the contact of cables with the rotating casing of the motor (for AXI 2217 / ...LONG) Price: 3,00€ Delivery status: in stock System for the AXI 2217 /… LONG motor, which minimizes the contact of the cables with the rotating casing. It is suitable to add to the motor, which is installed in narrow fuselage and there is a danger that the cabling will meet the rotating casing. |
 | 0167823-0,25 Název zboží: Velcro fastener width 5cm; length 25cm Price: 1,80€ Delivery status: in stock self-adhesive Velcro with high-quality acrylic glue, both parts. Price per 25cm. Notice: for fixing the battery |
 | 0123456789 Název zboží: digit sticker Price: 1,40€ Delivery status: in stock Suitable for describing servoconnectors. Digit height is 5mm. |
 | 0123456789BW Název zboží: Digits (stickers) for labeling the connectors (Black/white) Price: 1,40€ Delivery status: in stock Suitable for describing the servo connectors. Height of digits 5 mm. |
 | 0123456789RW Název zboží: Digits (stickers) for labeling the connectors (Red/white) Price: 1,40€ Delivery status: in stock Suitable for describing the servo connectors. Height of digits 5 mm. |
 | 020CGSTICK Název zboží: Center of gravity mark (sticker) Price: 1,20€ Delivery status: in stock 6pcs. Ø14mm, 8Pcs. Ø10mm. |
 | 8GR3009 Název zboží: Servo Cable Twisted Thick JR 0.25mm2 Price: 1,04€ Delivery status: in stock Twisted three-core cable in JR colors (brown / red / orange) with PVC insulation, conductor cross-section 0.25 mm2. Highly flexible, strands of 65 strands 0.07 mm, max. 48 V, 5A. Diameter 1.5 / 2.9 mm. Made in Germany. Weight 13g/1m. Price for 1 meter. Notice: 0,6m |
 | 020M3250 Název zboží: Tool for easy insertion of the motor into the fuselage M3x250mm 2 pcs Price: 0,48€ Delivery status: in stock threaded rod M3 x 250mm, 2 pcs |
 | 9001 Název zboží: Thermo-Shrinkable insulation Ø1,6mm (1m) Price: 0,30€ Delivery status: in stock For isolation of soldered joints of thin cables Ø1,6mm Price per 1 m. |
Spare parts
 | 02055-2ARF Název zboží: Swish 1,48 m ARF Wings Price: 120,00€ Delivery status: in stock Part of the wing is small accessories for installation of servos. |
 | 02055-2ARC Název zboží: Swish 1,48m Wings (uncovered - ready to cover) Price: 87,00€ Delivery status: in stock Part of the wing is small accessories for installation of servos. Not covered. |
| 02055-3,4ARF Název zboží: Swish elevator + rudder ARF Price: 45,00€ Delivery status: in stock The package contains: complete elevator, rudder and tail pylon; 2x 05056; 1x hinge; set of adhesive tapes |
 | 02055E-1 Název zboží: Fuselage Swish elektro Price: 43,00€ Delivery status: in stock fiberglass white gelcoated (cut nose to Ø30mm) + fiberglass tube. Total fuselage length 1110 mm. Available in different colors. |
 | 02055-3,4ARC Název zboží: Swish elevator + rudder (uncovered - ready to cover) Price: 31,50€ Delivery status: in stock The package contains: complete elevator, rudder and tail pylon; 2x 05056; 1x hinge. |
| 02055-4ARF Název zboží: Swish rudder ARF Price: 24,50€ Delivery status: in stock |
| 02055-3ARF Název zboží: Swish elevator ARF Price: 21,00€ Delivery status: in stock |
| 02055-4ARC Název zboží: Swish rudder (uncovered - ready to cover) Price: 17,50€ Delivery status: in stock Not covered. |
| 02055-3ARC Název zboží: Swish elevator (uncovered - ready to cover) Price: 14,00€ Delivery status: in stock not covered. |
 | 02055-6 Název zboží: Canopy Swish Price: 12,00€ Delivery status: in stock fiberglass blue gelcoated |
 | 02056-1B Název zboží: Fiberglass Conic tube Ø 14/10; 580mm Price: 8,00€ Delivery status: in stock Ø 14mm/10; length 580mm. Spare part Sweet; Swish; Bliss; Navaho; Dino; Cadet; Super Fun. Fiberglass; tail boom |
 | 02055-7 Název zboží: Swish stickers Price: 8,00€ Delivery status: in stock Stickers sawed with using a plotter on transfer film for Swish 1,48m wingspan. |
 | TAPE12 Název zboží: Set of adhesive tapes for ailerons and flaps 5 m Price: 4,80€ Delivery status: in stock Set of adhesive tapes for ailerons and flaps. Length 5 m. |
 | 05025 Název zboží: Wing servo mounts 9 mm (2 pairs) Price: 2,60€ Delivery status: in stock Polyurethan 9 mm, delivered in double pairs. Notice: previously used for ailerons |
 | 020134-2-4 Název zboží: Wing servo mounts 10 mm (plywood) Price: 2,40€ Delivery status: in stock plywood: 4Pcs. 8x10mm |
 | 02055-283848 Název zboží: Set of control horns for Swish, Sweet Price: 2,30€ Delivery status: in stock Fiberglass 1mm |
 | 05019 Název zboží: Plastic servo covers Price: 2,15€ Delivery status: in stock For micro–mini servo, ø 57 mm. Notice: used previously |
 | 050191 Název zboží: Plastic servo covers Ø 59mm Price: 2,15€ Delivery status: in stock For micro–mini servo, material:0,5mm, 1 pair (right, left) |
 | 02061-1C Název zboží: Motor mount ø 29,4mm Bliss Price: 1,60€ Delivery status: in stock CNC cut fiberglass, ø 29,4×2 mm, for FEIGAO B20-15L + 4:1 |
 | 020137-1C Název zboží: Motor mount ø 29,4mm Kavan Price: 1,60€ Delivery status: in stock CNC cut fiberglass Ø29,4×2mm. For Kavan C28xx |
 | 02073-1C Název zboží: Motor mount ø 29,4mm Siesta Price: 1,60€ Delivery status: in stock CNC cut fiberglass, ø 29,4×2 mm, for gearbox MPJ 8060 |
 | 02040-1C Název zboží: Motor mount ø 29,4mm Stinger Price: 1,60€ Delivery status: in stock CNC cut fiberglass, ø 29,4×2 mm |
 | 020HET5W-1C Název zboží: Motor mount ø 29,7mm HET Typhoon EDF-5W Price: 1,60€ Delivery status: in stock CNC cut fiberglass Ø29,7×2mm |
 | 02055-4A Název zboží: Swish vertical tail mount Price: 1,40€ Delivery status: in stock |
 | 02055-24 Název zboží: Swish Wing joiner Price: 1,30€ Delivery status: in stock |
 | SET2108 Název zboží: Sets Pushrod (2x Bowden tube Ø 2/1mm + 2x Steel wire Ø 0,8mm) Price: 1,10€ Delivery status: in stock length 1m. |
 | 05056 Název zboží: Fiberglass control horn Sweet Price: 0,60€ Delivery status: in stock Dimensions: 11×1,0×18,3 mm Notice: for elevator and rudder |
 | 050551 Název zboží: Fiberglass control horn Sweet, Swish Price: 0,60€ Delivery status: in stock Dimensions: 13×1,0×15 mm. Notice: for ailerons |
Additional charges
 | 02055PRH Název zboží: Extra charge for special covering (stripes) for model Swish on the underside of the wing and elevator Price: 31,00€ Delivery status: in stock |
 | 02002PRT Název zboží: Extra charge for reinforced fuselage with carbon Price: 18,00€ Delivery status: in stock Fibreglass fuselage is locally reinforced with carbon. |
