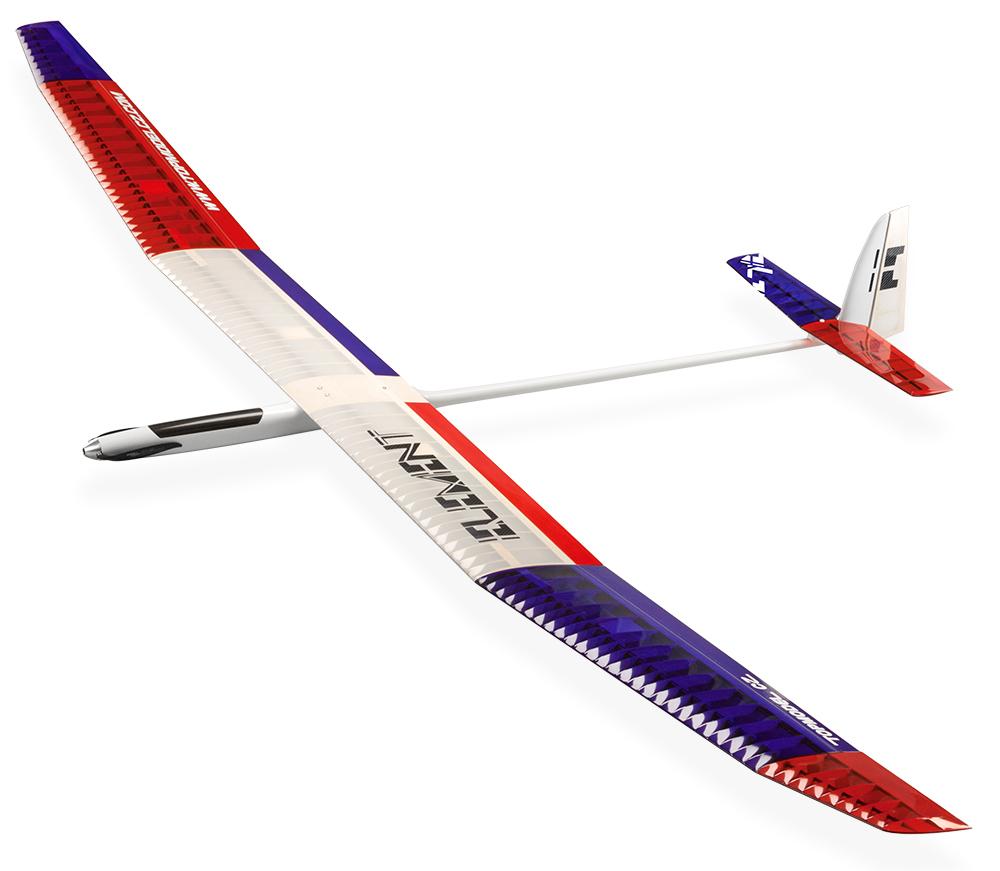

Element is indispensable for thermal flying.
The wing spars and leading edge from carbon fibre gives the wing enough strength and stiffness.
Many expert pilots will be particularly surprised by its excellent flight qualities, given by the thin wing airfoil and low weight.
Thanks to the long fuselage, the model has a calm and steady glide path.There are several possibilities how to mix the functions of the flaps (high performance thermal soaring, spot landing etc.).
With the recommended drive set, the performances are fantastics as well as when climbing (power) as soaring (lightness) and the flying time is counted in hours rather than in minutes!
The floating elevator is balsa framework with carbon spar and leading edge. The elevator is mounted on a fiberglass bed. Rudder and elevator are controlled by servo in the fin. The drive unit is designed so that it is possible to use 3S lipo battery.
The model is designed and manufactured in Czech Republic. Spare parts are in stock.
If you are interested in a different color combination than we offer, please contact us.
Technical specs:
|
|
|
|
|
|
|
|
RC equipment:
Servos: 4 micro servos for ailerons and flaps (Hitec HS 85MG)
2 micro servo for rudder and elevator (Savox SH-0257MG)
Motor: MEGA Acn 22/30/3E
Controller: 60-80A ( e.g. SPIN 66, XReg80 )
Spinner: "turbo" Ø 40mm - No.0201559
Propeller: 13/7" CAM FOLDING PROP Graupner/SJ
Accu: 3S LiPol 2,2-4Ah
Kit contents:
- Lightweight gel-coated white fiberglass fuselage and carbon canopy
- Three-piece wing is made in balsa framework with wing joiner, leading edges and wing spar made of carbon and covered with Oracover®
- Lightweight wings are made in a balsa framework and covered with Oracover®
- Removeable tail surfaces are made in a balsa framework and covered with Oracover®
- Vinyl cnc cut stickers
- Top quality accessories
- Complet assembly manual with step by step illustrations
Equipments required
 | JSP-66 Název zboží: SPIN 66 PRO Price: 127,10€  Delivery status: in stock SPIN pro controller include a new type of voltage stabilizer for receiver and servos, the so called switching BEC with an output voltage of 5.5 V. The use of this feature opens the way to the use of BEC for models operating at higher voltages. A significant factor is that the BEC circuit maintains its full current capability right up to the maximum voltage. |
 | 20223003E Název zboží: Mega ACn 22/30/3E Price: 106,00€ Delivery status: in stock Brushless electric motor Ø36mm x 53,5mm, KV9350 rpm on V, weight 220g, max. current 70A, shaft Ø5mm. |
 | 020130-PO Název zboží: Transport bags for Element 3,5m Price: 89,00€ Delivery status: in stock Bags for wings, elevator and rudder. |
 | 2463 Název zboží: Accu LiPol Xpower 4000-3S ECO 25C Price: 49,76€ Delivery status: in stock 4000-3S ECO-S (11,1V); 143x45x24 mm 303 g ; Max. current load: 25C; Charging current up to 4C; Balance connector type JST-XH. |
 | 1HI3050-1x Název zboží: HS-85 MG Bulk 1pc Price: 31,90€ (recommended quantity: 4 pieces) Delivery status: in stock Strong microservo 21g with metal gears for electric planes and sailplanes. 1xBB, torque 3,0 kg/cm, speed 0,16s/60st in 4,8 V. Notice: for ailerons and flaps |
 | SAVOX-SH0257MG Název zboží: SH-0257MG+ Digitální servo (2,2 kg-0,09s/60°) Price: 21,24€ (recommended quantity: 2 pieces) Delivery status: in stock Digitální micro servo s stejnosměrným motorem a kovovými převody, 1x kuličkové ložisko, 1,8/2.2kg při 4,8/6,0V a 0,13/0,09s na 4,8/6,0V, váha 14,0g, 22,8x12x25,4mm. Provozní napětí 4,8 - 6,0V. Notice: for elevator and rudder |
 | 0201559 Název zboží: Alu precision spinners turbo 40/5,0/8 Price: 17,50€ Delivery status: in stock Spinner ø 40/5 mm, for blade root width 8 mm. |
 | 1336.33.18 Název zboží: CAM FOLDING PROP 13x7" (33x18 cm) Price: 5,98€ Delivery status: in stock Plastic sheets Graupner 13x7 "filled with glass fibers for direct drive, the root of 8 mm, pin 3 mm. |
 | UHU5146 Název zboží: UHU-Por 50ml Price: 4,38€ Delivery status: in stock Notice: for gluing the servo covers |
 | 020MPXORIGINAL Název zboží: MPX M6 ORIGINAL MULTIPLEX connector 1 pair Price: 3,60€ (recommended quantity: 2 pieces) Delivery status: in stock MPX konektor, 1 pár. Originální konektor měmeckého výrobce - toto není čínská náhražka. |
 | 03801 Název zboží: Clip fixing mini 2 pairs Price: 2,60€ Delivery status: in stock for wing fixing, plastic, 2 pairs |
 | Nes001 Název zboží: MPX 6 connector holder Price: 2,40€ (recommended quantity: 2 pieces) Delivery status: in stock For MPX 6 connectors 1 pair + 4x Screw |
 | 182040 CAN15 Název zboží: Connector CAN 15 Price: 1,80€ Delivery status: in stock Three-Row connector, 15 PIN. Connector suitable for wiring of servos in the wing and fuselage. By using this connector is not necessary for each assembly / disassembly wing separate cables to connect the servos to the receiver. Price for 1 pair. |
 | 0167823-0,25 Název zboží: Velcro fastener width 5cm; length 25cm Price: 1,80€ Delivery status: in stock self-adhesive Velcro with high-quality acrylic glue, both parts. Price per 25cm. Notice: for fixing the battery |
 | 0123456789 Název zboží: digit sticker Price: 1,40€ Delivery status: in stock Suitable for describing servoconnectors. Digit height is 5mm. |
 | 0123456789BW Název zboží: Digits (stickers) for labeling the connectors (Black/white) Price: 1,40€ Delivery status: in stock Suitable for describing the servo connectors. Height of digits 5 mm. |
 | 0123456789RW Název zboží: Digits (stickers) for labeling the connectors (Red/white) Price: 1,40€ Delivery status: in stock Suitable for describing the servo connectors. Height of digits 5 mm. |
 | 020CGSTICK Název zboží: Center of gravity mark (sticker) Price: 1,20€ Delivery status: in stock 6pcs. Ø14mm, 8Pcs. Ø10mm. |
 | 8GR3009 Název zboží: Servo Cable Twisted Thick JR 0.25mm2 Price: 1,04€ (recommended quantity: 5 pieces) Delivery status: in stock Twisted three-core cable in JR colors (brown / red / orange) with PVC insulation, conductor cross-section 0.25 mm2. Highly flexible, strands of 65 strands 0.07 mm, max. 48 V, 5A. Diameter 1.5 / 2.9 mm. Made in Germany. Weight 13g/1m. Price for 1 meter. Notice: cca 5m |
 | 0370 SZ Název zboží: Countersunk head screw M3x6 PH 10pcs Price: 0,56€ Delivery status: in stock Precision steel countersunk screws cross recessed shape of the Phillips M3x6, DIN 965A, zinc plated finish. 10pcs Notice: for fixing the motor |
 | 020M3250 Název zboží: Tool for easy insertion of the motor into the fuselage M3x250mm 2 pcs Price: 0,48€ Delivery status: in stock threaded rod M3 x 250mm, 2 pcs |
 | 9001 Název zboží: Thermo-Shrinkable insulation Ø1,6mm (1m) Price: 0,30€ Delivery status: in stock For isolation of soldered joints of thin cables Ø1,6mm Price per 1 m. |
Spare parts
 | 020130-2ARF Název zboží: Element wings ARF Price: 405,00€ Delivery status: in stock Part of the wing is small accessories for installation of servos. Covered Oracover®. |
 | 020130-2ARC Název zboží: Element wings (uncovered - ready to cover) Price: 323,00€ Delivery status: in stock Part of the wing is small accessories for installing servos. |
 | 020130-1 Název zboží: Fuselage Element Price: 114,00€ Delivery status: in stock fiberglass colour, length 1680mm. Fiberglass floating elevator bed is included. |
 | 020130-3ARF Název zboží: Element elevator ARF Price: 52,00€ Delivery status: in stock |
 | 020130-3ARC Název zboží: Element elevator (uncovered - ready to cover) Price: 42,00€ Delivery status: in stock |
 | 020130-4ARF Název zboží: Element rudder ARF Price: 25,10€ Delivery status: in stock |
 | 020130-4ARC Název zboží: Element rudder (uncovered - ready to cover) Price: 20,20€ Delivery status: in stock |
 | 020130-6 Název zboží: Canopy Element (CARBON) Price: 19,00€ Delivery status: in stock materiel: carbon |
 | 020130-7 Název zboží: Element stickers Price: 15,90€ Delivery status: in stock Stickers sawed with using a plotter on transfer film. |
 | 020130-6COLOR Název zboží: Canopy Element Price: 15,00€ Delivery status: in stock fiberglass gelcoated |
 | 02123-3-2 Název zboží: Kit floating elevator bed Samsara, Element Price: 4,90€ Delivery status: in stock materiall: fiberglass |
 | TAPE12 Název zboží: Set of adhesive tapes for ailerons and flaps 5 m Price: 4,80€ Delivery status: in stock Set of adhesive tapes for ailerons and flaps. Length 5 m. |
 | 020130-4-1 Název zboží: Servo covers for rudder Element Price: 4,60€ Delivery status: in stock material: fiberglass |
 | 020130-2828148 Název zboží: Set of control horns for Element, Samsara Price: 3,40€ Delivery status: in stock Fiberglass 1,5mm |
 | 02072-1C Název zboží: Motor mount ø 39mm Universal Price: 2,60€ Delivery status: in stock CNC cut fiberglass Ø39,2 x 3 mm |
 | 05028 Název zboží: Wing servo mounts 13 mm (2 pairs) Price: 2,60€ Delivery status: in stock Polyurethan 13 mm, delivered in double pairs. Notice: servo mount for rudder, ailerons and flaps |
 | 05018 Název zboží: Plastic servo covers Price: 2,15€ Delivery status: in stock For mini servo, ø 65 mm. Notice: servo mount for ailerons and flaps |
 | 2502 Název zboží: Pinned hinge 16x32 mm 6pcs Price: 1,84€ Delivery status: in stock The workmanship of the pinned hinge with the steel pin and six throughholes allows free movement with minimal passive resistance and a secure mounting with cyanoacrylate or epoxy glue into the wing, or if need be into the rudder and elevator of the model. The hinges are delivered mounted. 6pcs Notice: for rudder |
 | CA8055 Název zboží: Universal wing joiner Ø8 L 155mm CARBON 1Pc Price: 1,80€ Delivery status: in stock new version of the universal wing joiner for three-part wings. It isn´t compatible with the fiberglass wing joiner No.FI8155. |
 | 020123-4-3 Název zboží: Steven Samsara, Element Price: 1,70€ Delivery status: in stock material: plywood 4mm |
 | 1006 AL Název zboží: Mounting nuts M4 4pcs Price: 1,56€ Delivery status: in stock Fixing nuts, aluminum alloy, assembly gluing, M4 thread. 4pcs Notice: for fixing the wing |
 | 020123-2-31,2-32 Název zboží: Washer for matrix Samsara, Element Price: 1,50€ Delivery status: in stock Washer for matrix Samsara. Package contains: plywood 4 x 25 x 44 mm, plywood 4 x 25 x 37 mm |
 | 1004 AL Název zboží: Mounting nut M3 4pcs Price: 1,44€ Delivery status: in stock Fixing nuts, aluminum alloy, assembly gluing, M3 thread. 4pcs Notice: for fixing the wing |
 | 2039 Název zboží: The ending ties to Al Carbon Tr pr.4/M2, right thread, 2pcs Price: 1,04€ Delivery status: in stock The aluminium threaded couplers are designed for the carbon tube. In assortment are couplers for carbon tube with outside diameters 3-6 mm. The couplers have the threads M2; M2,5; M3; M4. 2pcs Notice: clutch for elevator pushrod |
 | 020123-4-8 Název zboží: Fiberglass control horn for rudder Samsara, Element Price: 1,00€ Delivery status: in stock material: fiberglass, 1,5mm dimension:23,4 x 9,1mm. Notice: for rudder |
 | 020123-1-2 Název zboží: Elevator servo tray for Samsara, Element Price: 0,99€ Delivery status: in stock plywood 4 x 39 x 35mm |
 | 1310 Název zboží: Nylon bolts M4x20 4pcs Price: 0,88€ Delivery status: in stock Designed to strengthen bearing surfaces, cowlings, etc. Available in black or white. 4pcs Notice: for fixing elevator |
 | FI8155 Název zboží: Universal wing joiner Ø8 L 155mm fiberglass 1Pc Price: 0,80€ Delivery status: in stock Notice: used previously |
 | 050702 Název zboží: Fiberglass control horn Linea Price: 0,70€ Delivery status: in stock Fiberglass 1,5mm Notice: for flaps |
 | 2110 Název zboží: Plastic clevis LITTLE, l=23, slot width 1,6, pin o 1,6, M2 (2pcs) Price: 0,64€ Delivery status: in stock Clevis with a special metal pin. L=23mm, pin Ø1,6, M2. Available in black and white. Notice: for ailerons and flaps |
 | 0166240 Název zboží: Metal pushrod M2 Ø1,7 L=200 mm Price: 0,62€ Delivery status: in stock Wire with M2 thread. Total length 200mm, thread length 22mm, wire diameter 1,7mm. Notice: pushrod for ailerons and flaps |
 | 05070 Název zboží: Fiberglass control horn Linea Price: 0,60€ Delivery status: in stock Fiberglass 1,5mm Notice: for ailerons |
 | 1312141 Název zboží: Metal Clevis M2, 1 pc. Price: 0,55€ Delivery status: in stock Made from high quality heavy gauge spring steel which doesn‘t fatigue with use. Nickel-plated for a rust free surface. Notice: ending of the elevator and rudder pushrod |
 | 0102 SZ Název zboží: Nut M2 10pcs Price: 0,50€ Delivery status: in stock Precision steel hex nut M2, DIN 934, zinc plated finish. 10pcs |
 | 020SCM320 Název zboží: Screw M3x20 ornamental head (2 pcs.) Price: 0,35€ Delivery status: in stock Notice: for fixing the wing |
 | 020SCM430 Název zboží: Screw M4x30 ornamental head (2 pcs.) Price: 0,35€ Delivery status: in stock Notice: for fixing the wing |
