Performance brushless "outrunner in a can"
Output power cables in the axis at the rear of the engine, perfect for easy installation in the narrow fuselage nose of sailplanes no more hassles with the wires wrapping around the motor!
Superbly suited to F5J light gliders with a take-off weight not exceeding 1700g.
Robust 5mm diameter motor shaft to resist muscular landings on landing spots!
XPower F2919/10
Specifications:
- Recommended number of cells: 3 LiPo
- KV: 1480 RPM/V
- Max current: 38A (30")
- Internal resistance: 30mOhm

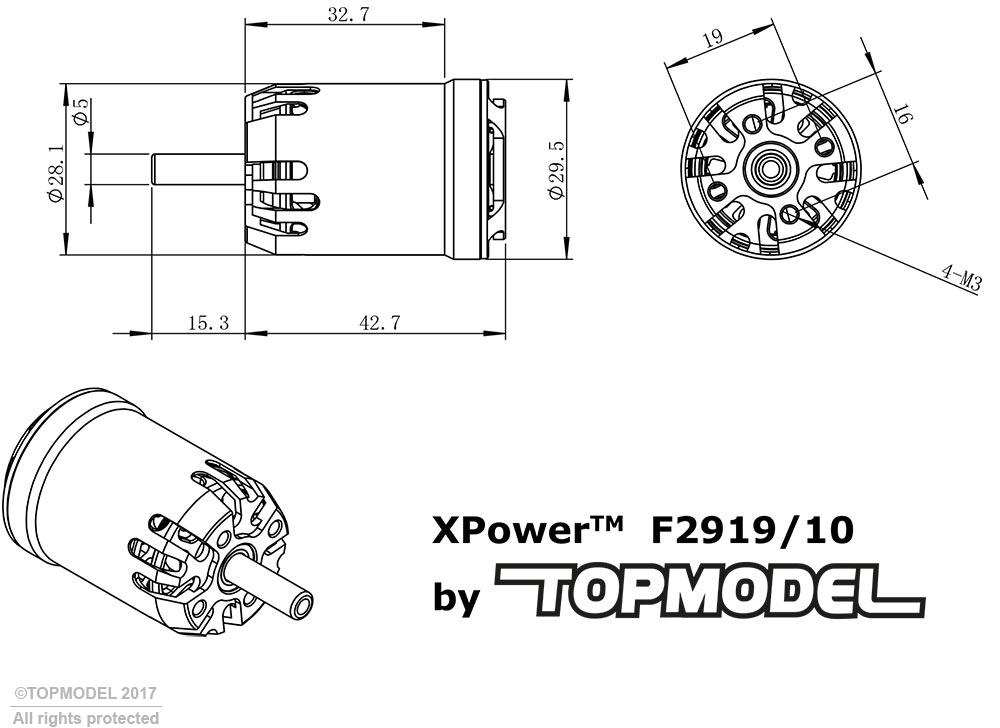

- Dimensions: Ø28.1x42.7mm
- Shaft diameter: 5.0mm

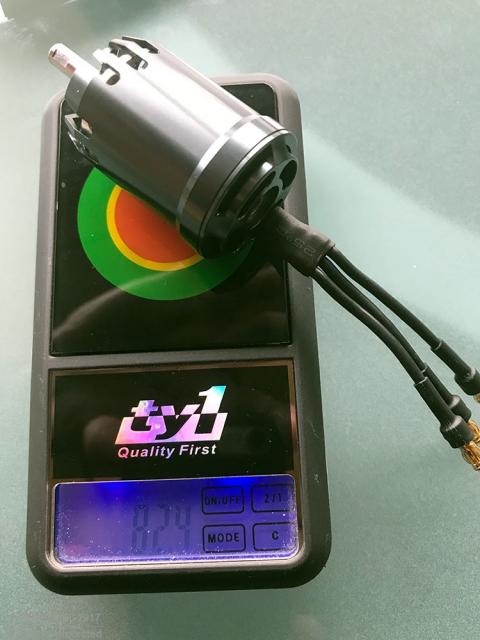

- Weight: 83g approx.
- Recommended props: 10x5-11x6"
Measures:
- Prop: AERONAUT CAM CARBON 10x6"
- Controller: XPower XSreg40
- Battery pack: Hot-LiPS VHD 1300 3S1P
- RPM: 11900
- Current drain: 34A
- Static thrust: 1.5kg
Measures:
- Prop: XPower CARBON 10x6"
- Controller: XPower XSreg40
- Battery pack: Hot-LiPS VHD 1300 3S1P
- RPM: 12000
- Current drain: 32A
- Static thrust: 1.4kg
Measures:
- Prop: XPower CARBON 11x6"
- Controller: XPower XSreg40
- Battery pack: Hot-LiPS VHD 1300 3S1P
- RPM: 11000
- Current drain: 37A
- Static thrust: 1.7kg
| Measures TOPMODEL CZ | |||
|---|---|---|---|
|
Dualsky 2700-3S ECO 25C, Spinner Ø30mm/plug distance in drive dog 36mm |
|||
|
prop |
Current (A) |
Static thrust - Kg (stat) |
KV |
|
Aeronaut CAM Carbon 9/5" |
37 |
1,45 |
12900 |
|
Aeronaut CAM Carbon C 9/4" |
29 |
1,2 |
13800 |
|
Aeronaut CAM Carbon 8/5" |
31,5 |
1,1 |
13400 |
|
Graupner Cam Folding 9/6" |
42 |
1,45 |
12600 |
|
Aeronaut CAM Carbon 10/5" |
42 |
1,75 |
|
Delivered complete with 3.5mm GOLD connectors.
Content of the setEquipments required
