Performance brushless "outrunner in a can"
TOPMODEL innovates once again by offering a super light motor made for the lightest competition F5J gliders!
Output power cables in the axis at the rear of the engine, perfect for easy installation in the narrow fuselage nose of sailplanes no more hassles with the wires wrapping around the motor!
Superbly suited to F5J light gliders with a take-off weight not exceeding 1300g.
Eliminating gearbox simplifies "mechanics" and thus limits the risk of failure. In addition, swinging a much smaller propellers at high RPM reduces the effects of gyroscopic torques that make the initial climb out easier to manage and accelerates the horizontal speed of the model.
Robust 5mm diameter motor shaft to resist muscular landings on landing spots!

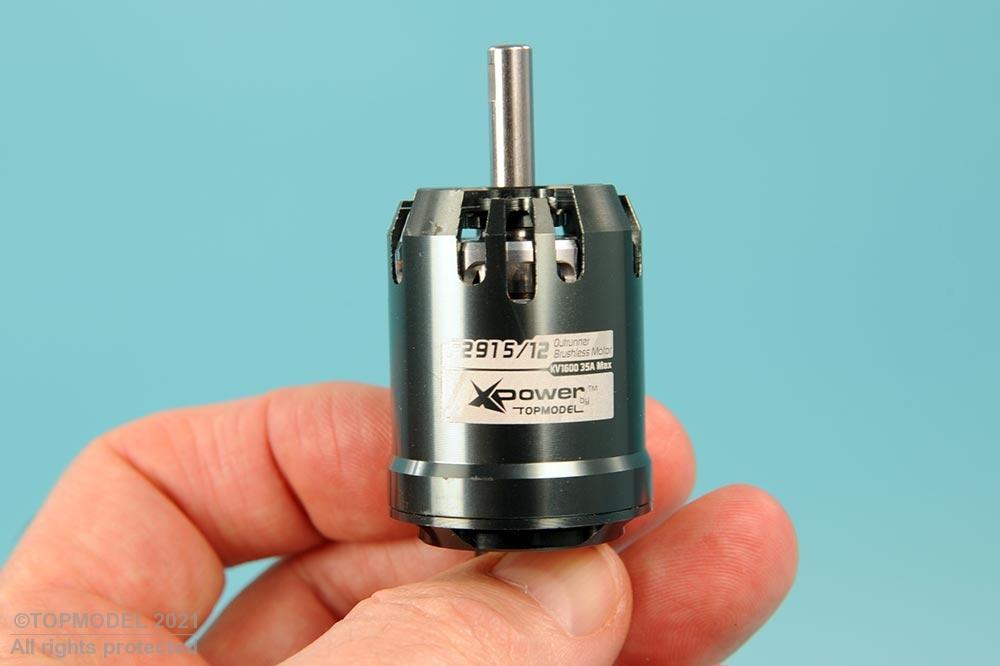

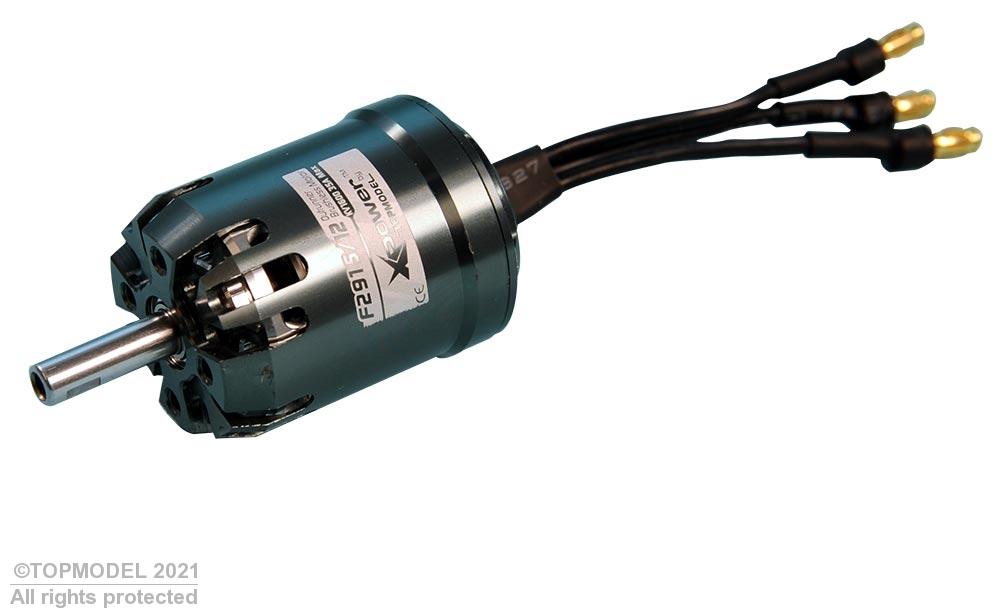

XPower F2915/12 XLight
Specifications:
- Recommended number of cells: 3 LiPo
- KV: 1600 RPM/V
- Max current: 35A (30")
- Internal resistance: 42mOhm
- Dimensions: Ø28.1x38.7mm
- Shaft diameter: 5.0mm
- Weight: 72g approx.
- Recommended props: 10x5-11x6"
Measures:
- Prop: XPower CARBON 10x6" + GM carbon spinner 32mm
- Controller: XPower Xreg30 V5
- Battery pack: Hot-LiPS VHD 600 3S1P
- RPM: 10600
- Current drain: 35A
- Static thrust: 1.3kg
Recommended controller: XPower Xreg30 V5
Delivered complete with 3.5mm GOLD connectors.
